Step 7: Collect user input and work with variables (tutorial)
So far, we've only added read-only items to our form. In this step, we'll introduce items that collect data from the user, and then we'll store that data in variables. Variables are, in a sense, the "engine" of NIM apps. They let us store state and get data where it needs to be.

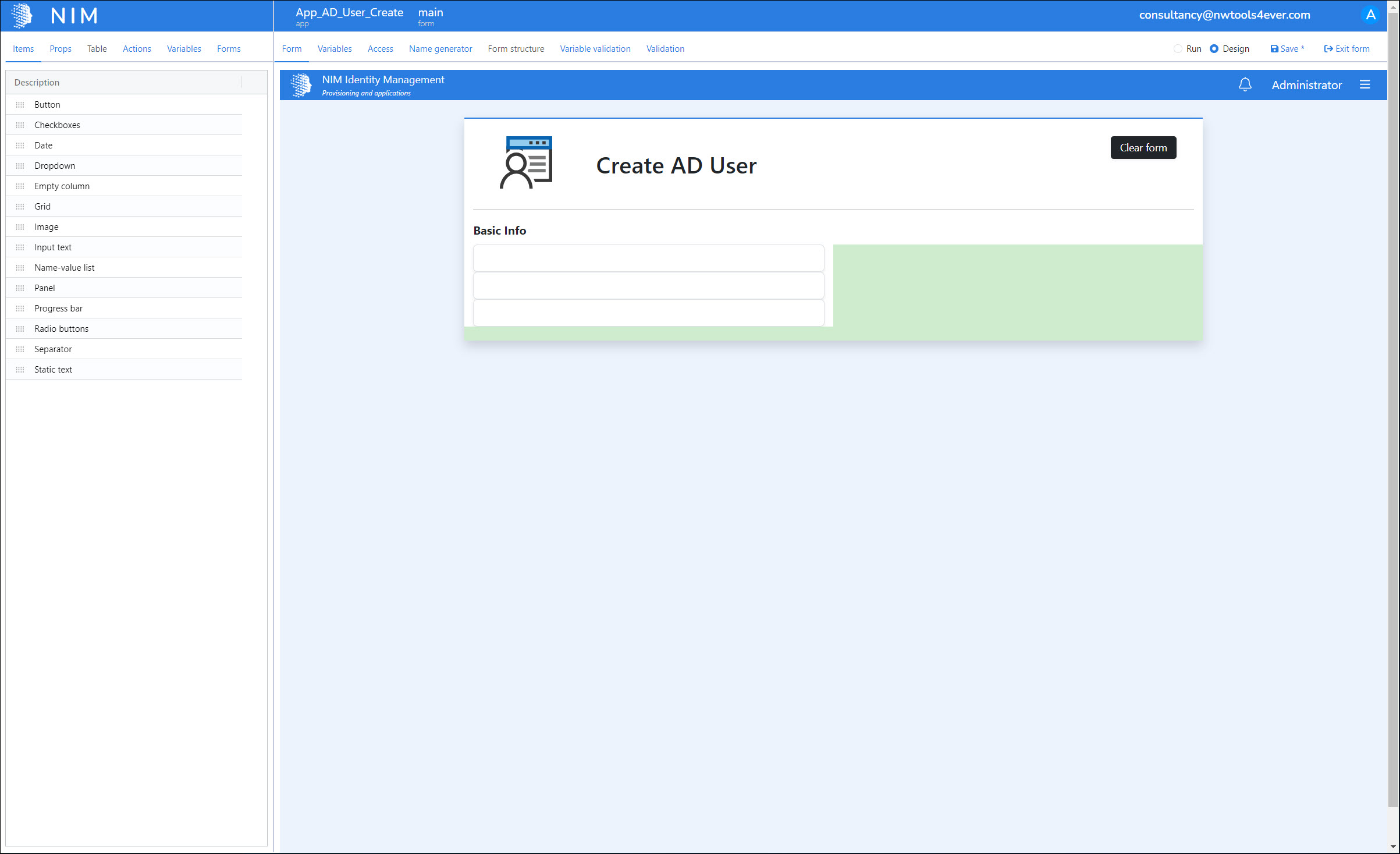

- We'll add 3 Input Text items to our form in consecutive rows, and set each item's column width to

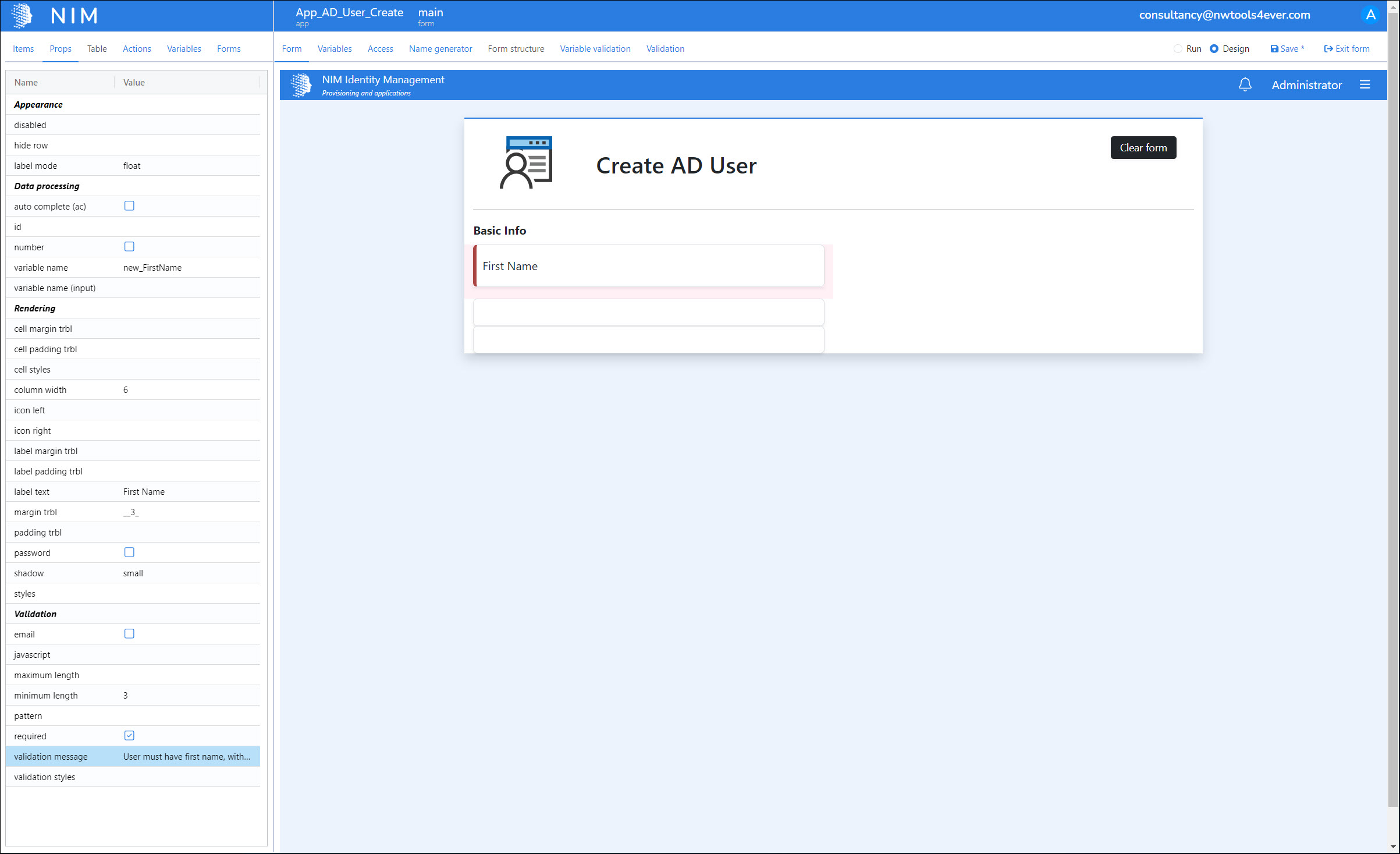

6. - We'll set the properties of the first input text item as follows: - label mode: float - variable name: new_FirstName - label text: First Name - margin trbl: _3 - minimum length: 3 - required: yes - validation message: User must have first name, with a minimum of 3 characters ### Tip The value that the user inputs into this field will be stored in the new_FirstName variable. As we'll see shortly, we can bind this variable to other objects in our app.

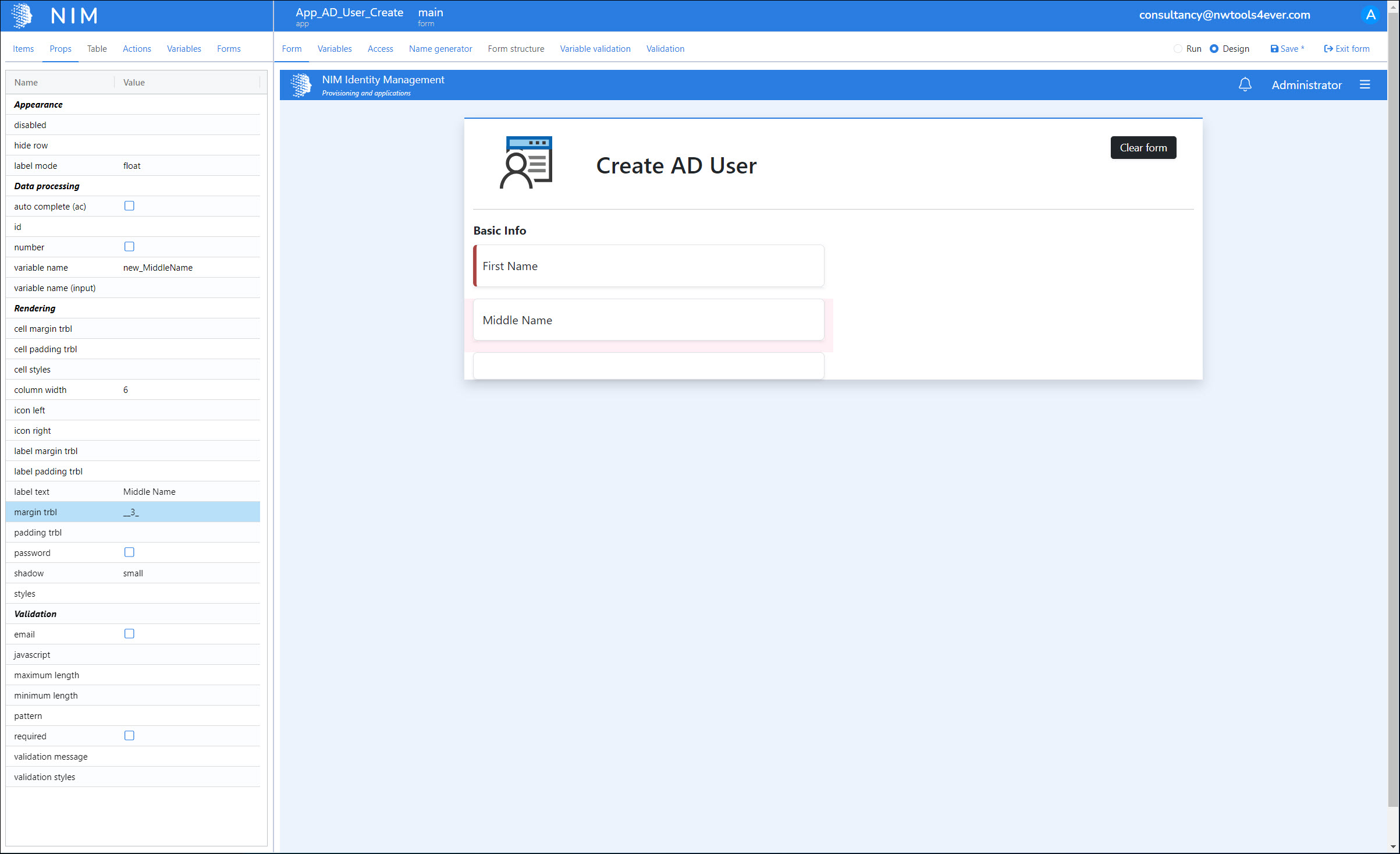

- We'll set the properties of the second input text item as follows: - label mode: float - variable name: new_MiddleName - label text: Middle Name - margin trbl: _3
- We'll set the properties of the third input text item as follows: - label mode: float - variable name: new_LastName - label text: Last Name - margin trbl: _3 - minimum length: 3 - required: yes - validation message: User must have last name, with a minimum of 3 characters
- We'll click Save to save our progress so far.
